Speed windproof vertical folding soft pvc doors

JIANDA Folding Roll Up Doors

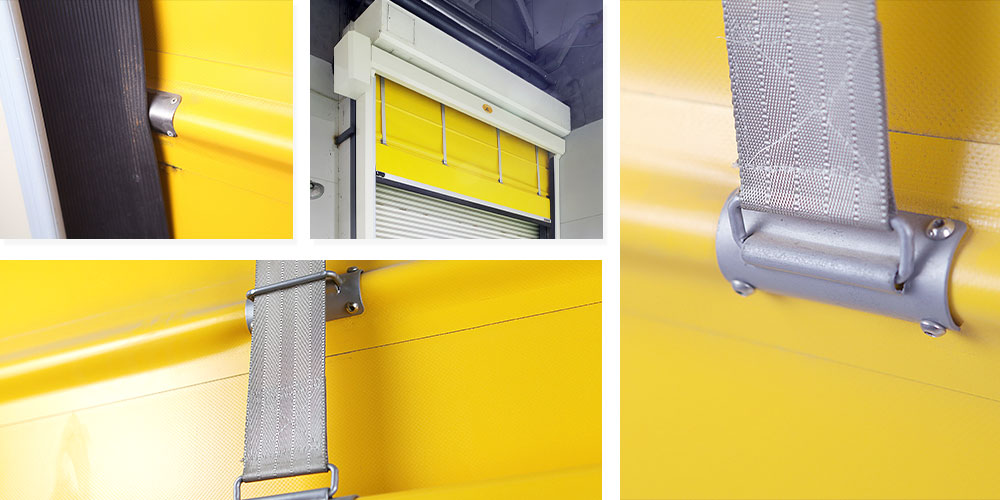

The straps are made of high-strength polyester webbing (car seat belts), which has strong tensile strength and wear resistance; The bottom of the door has a flexible coating fabric that tightly integrates with uneven ground to increase sealing effect; Adopting imported motors from Germany; Supports opening windows and quick stacking for lifting.

Door curtain material		0.8-1.2mm PVC high-density coated fabric imported from French
Door frame material		Galvanized steel, aluminum alloy, stainless steel
Track & Box cover		Using 2.0mm thick galvanized steel fold surface
Drive System		Germany SEW motor 380V or 220V/50Hz 0.75kw,1.1kw,1.5kw
Opening Way		Double-side radar, double-side press button, infrared sensors

Detail

Features

Safe: This kind of door use infrared sensor and airbag which can ensure huaman's safety. The door will stop closing quickly when someone go across.
Long lifetime: The cover box use 2.0mm high quality galvanized steel which can protect door from bad environment so that the can work long time.
Faster: This kind of door use imported SEW motor so that the open speed can reach 1.5/s max and close speed can reach 1.2m/s max.
Easy to clean: The curtain use imported PVC fabric which can clean easily.
Save energy: The system will turn off the power automatically when the door hasn't work for 30 minutes, and the system will restart within 10 milliseconds once there is a new signal.
