Protection Screen High Speed Vertical Roll up Doors for Robotic Welding Cells

Brand：JIANDA
Running speed：0.8-1.5m/s
Motor：Servo/SEJ/SEW
Application：Welding room/Robot production line

Our Advantage:

29 years production experience!
3000+ sets door be exported per year.
CE/ISO9001 Cert.
Easy installation, 3D video/ manual books instructions.
One year quality guarantee.
10 years Experienced technician support.


Item	Details
Curtain:	0.8mm / 1.2mm high density Franch brand SIOEN fabric. 2.0mm thickness clear PVC for visual window.
Cover box/ Track:	Stainless steel/ Aluminum alloy/ Galvanzied Steel
Max. area:	48 m², 6000 mm / 8000 mm (DW max/ DH max.)
Wind resistance:	12~19KM/H
Temperature range	'-35℃ to 60℃
Motor power	0.75KW~2.2KW, 110V/ 220V/ 380V/ 480V. 50HZ/60HZ
Standard Accessories:	Radar, push button, infrared light,
Optional Accessories:	Remote control,bottom safety air bag, Motor Manual Rocker. Crash Column, Pedestrian and vehicle split radar, and so on.

Some entrances simply demand more.
We manufacture products with a varity options that provide durable, fast and efficient entrance solutions, we show you more detailed pictures for your reference.

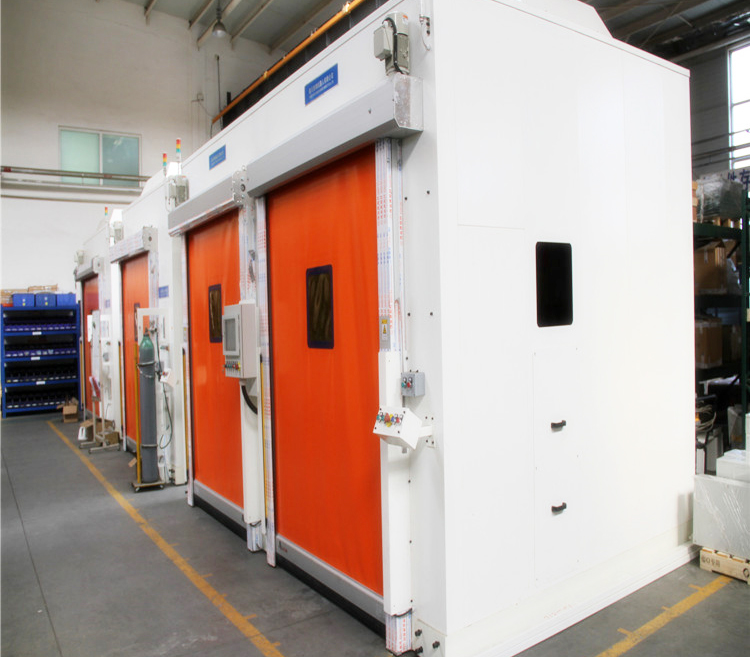

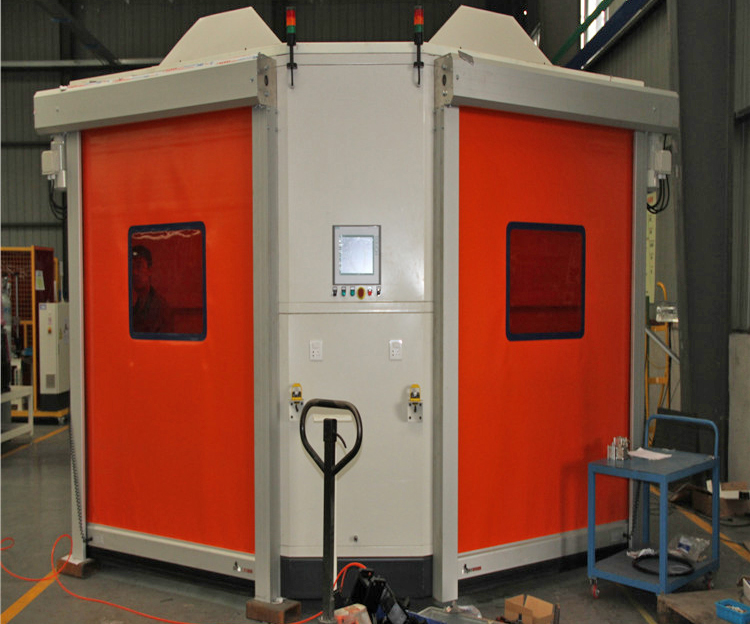

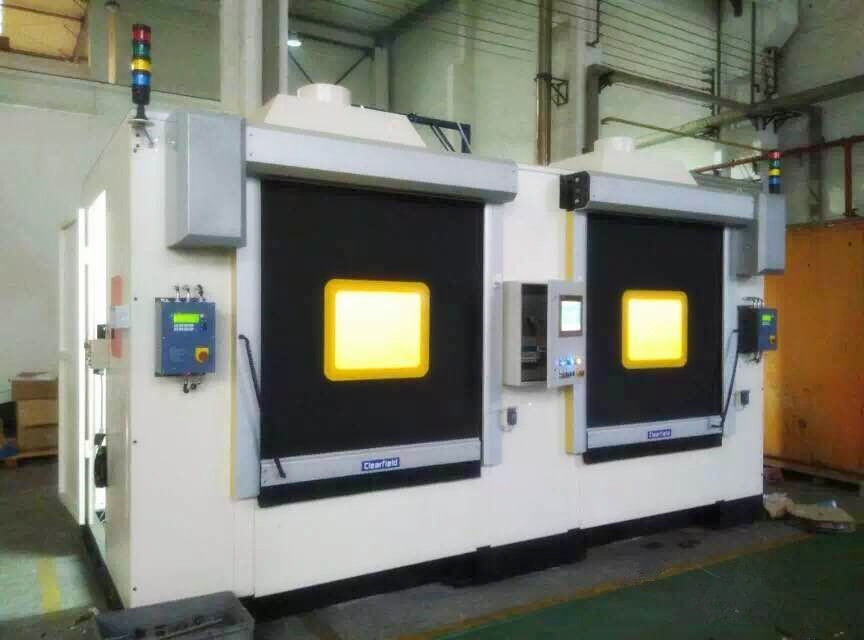

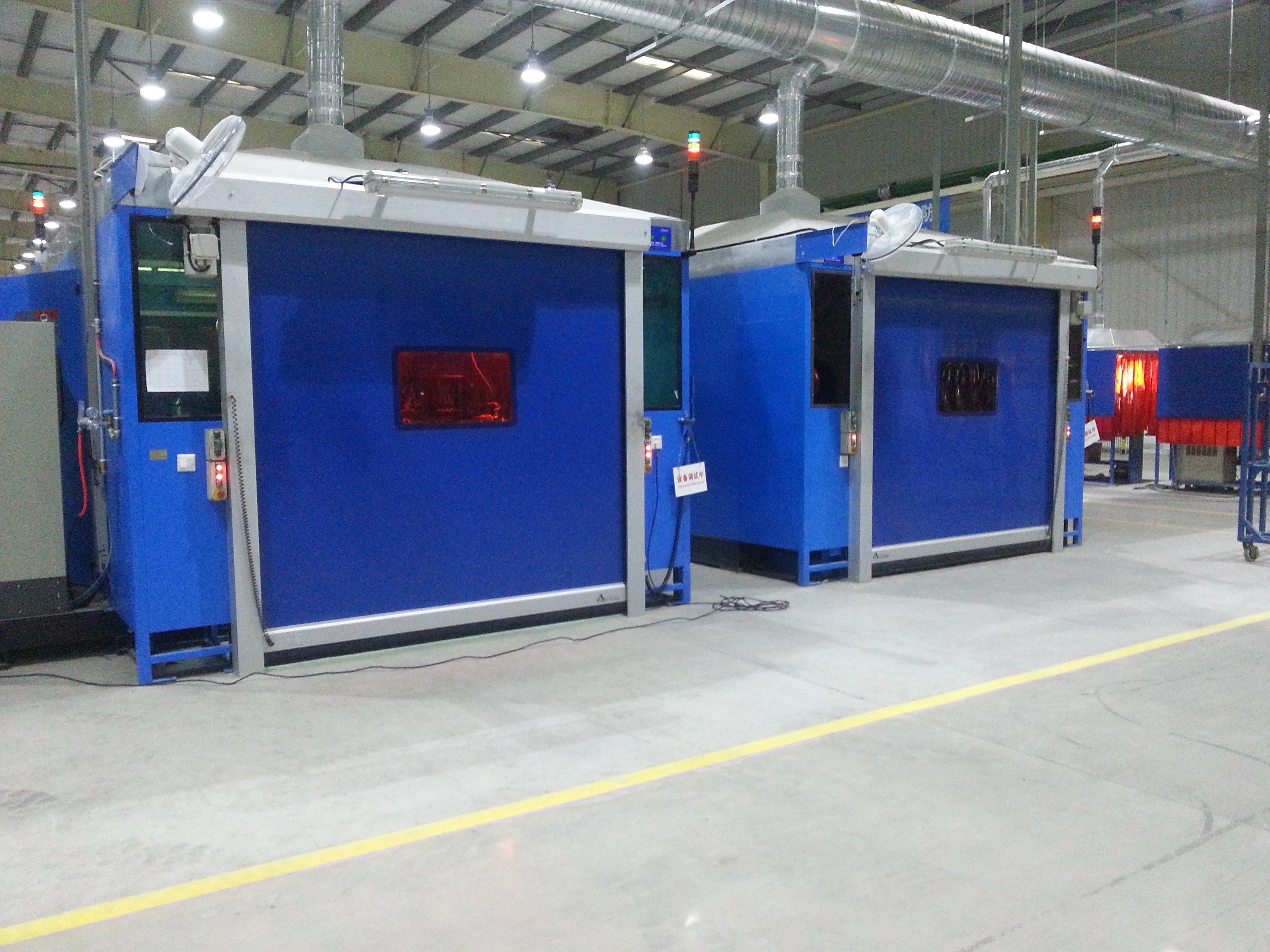

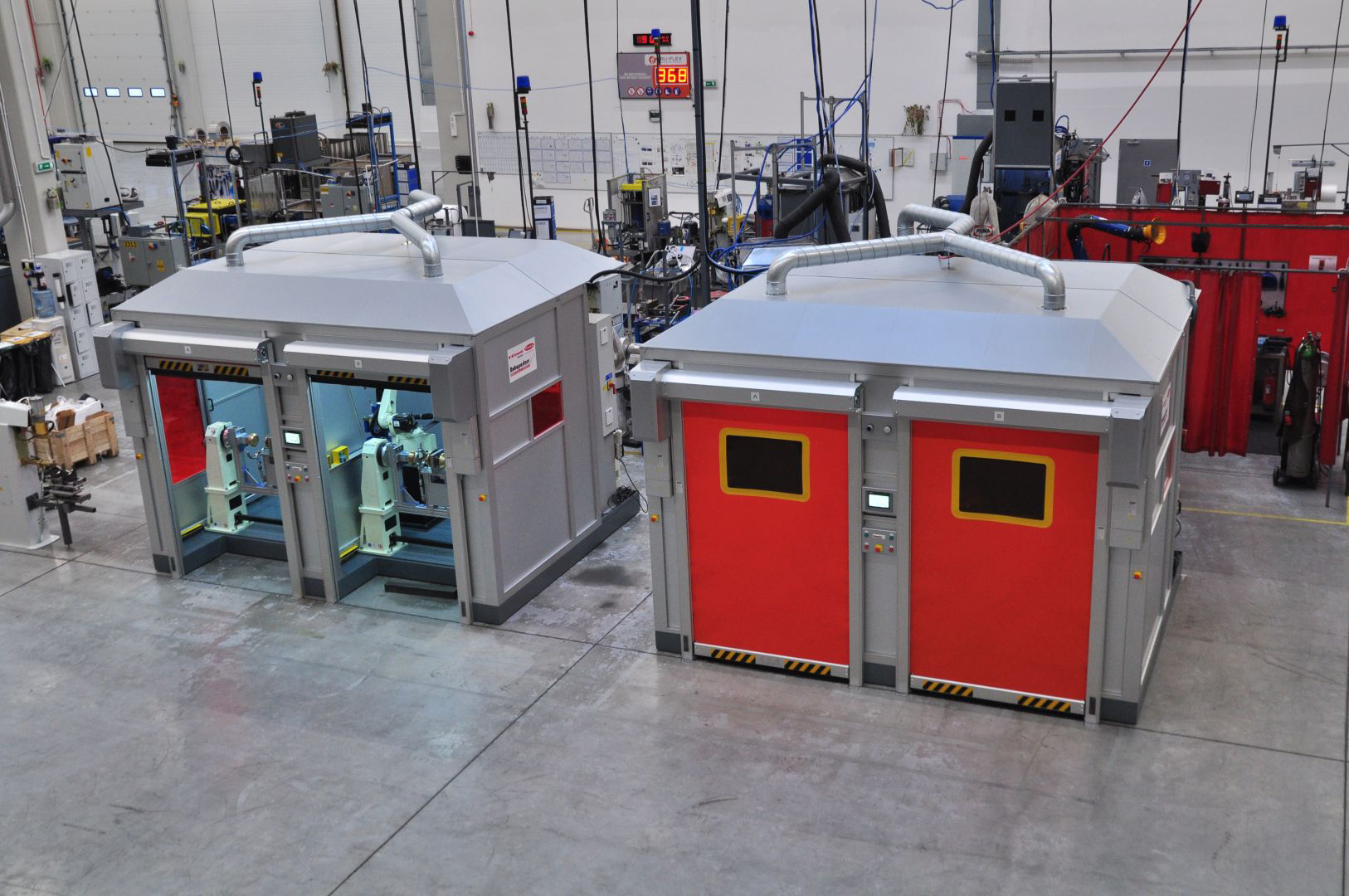

1.Real Case
2.Features

Nylon braided material, with a thickness of 2.0mm, can effectively block the welding slag, sparks, arc light and welding gas generated when the robot is connected.
The sealing performance is quite good (the gap between rail openings is 2mm); The track material is galvanized plate, which is easy to install; No corner code fixing is required;
Improve concentricity, reduce running jitter and noise
3.Certificate
